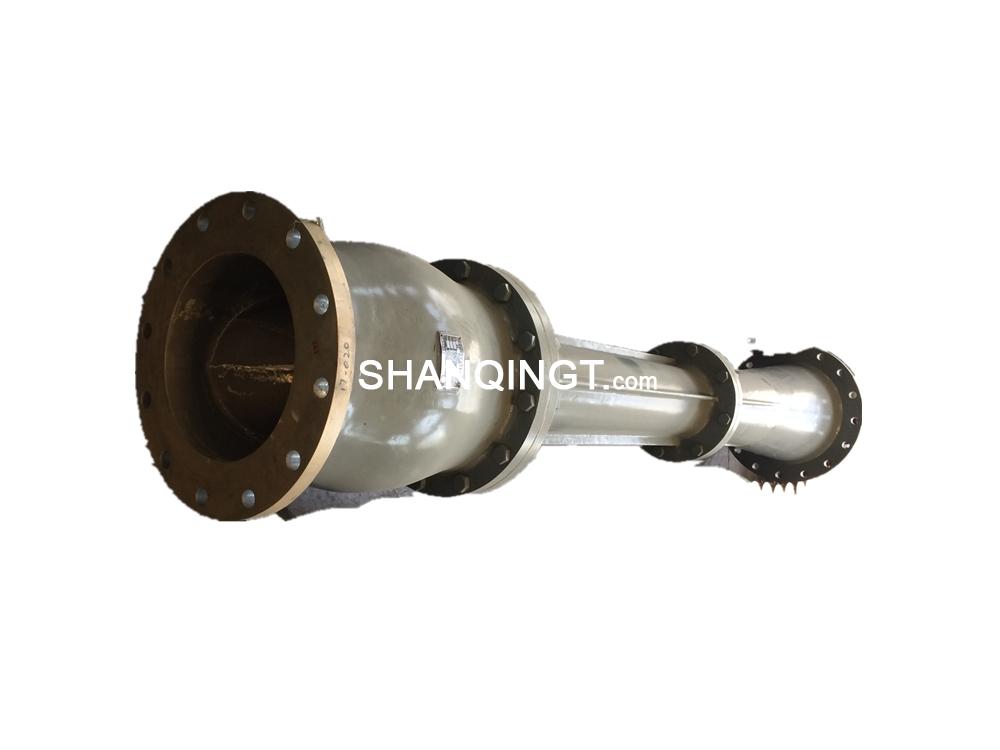

General description:
The pump suction flange axis perpendicular to the pump body axis, The pump suction flange axis perpendicular to the pump body axis, can work continuously steadily. No moving parts, long service life. can work continuously steadily. No moving parts, long service life. environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc
Tech Parameter:
|
Type
|
Capacity |
Delivery |
suc'head |
working pressure |
water consumption |
weight |
|
m3/h |
m |
m |
mpa |
m3/h |
kg |
|
|
CP5-0.7T |
5 |
8 |
4 |
0.7 |
3.6 |
14 |
|
CP5-0.3T |
5 |
5 |
4 |
0.3 |
6 |
17.2 |
|
CP10-1.0T |
10 |
20 |
5 |
1 |
16.7 |
16 |
|
CP10-0.7T |
10 |
8 |
4 |
0.7 |
7 |
20 |
|
CP10-0.3T |
10 |
5 |
4 |
0.3 |
12 |
20.5 |
|
CP15-0.5T |
15 |
11 |
7 |
0.5 |
24 |
26 |
|
CP15-0.3T |
15 |
5 |
4 |
0.3 |
19 |
25.8 |
|
CP15-0.7T |
15 |
15 |
4 |
0.7 |
27 |
28.5 |
|
CP20-0.7T |
20 |
8 |
4 |
0.7 |
14 |
28.5 |
|
CP20-0.3T |
20 |
5 |
4 |
0.3 |
24 |
26 |
|
CP30-0.7T |
30 |
8 |
4 |
0.7 |
21 |
32 |
|
CP30-0.3T |
30 |
5 |
4 |
0.3 |
36 |
50 |
|
CP40-0.3T |
40 |
5 |
4 |
0.3 |
47 |
49.5 |
|
CP50-1.0T |
50 |
20 |
5 |
1 |
64 |
52 |
|
CP50-0.7T |
50 |
8 |
4 |
0.7 |
35 |
48 |
|
CP50-0.3T |
50 |
6 |
3 |
0.3 |
55 |
56 |
|
CP60-0.7T |
60 |
6 |
6 |
0.7 |
50 |
55.5 |
|
CP80-0.7T |
80 |
10 |
5 |
0.7 |
90 |
75 |
|
CP100-0.7T |
10 |
9 |
2 |
0.7 |
60 |
71.5 |
|
CP100-0.3T |
100 |
6 |
3 |
0.3 |
110 |
73 |
|
CP100-0.2T |
100 |
7 |
3 |
0.2 |
305 |
120 |
|
CP200-0.7T |
200 |
9 |
2 |
0.7 |
120 |
|
