General description:
CWY emergency fire pump is applicable for water supply in fire‐fighting system with fresh water or liquid of similar physical/chemical properties, not higher than 80 degree as main extinguishing agent.

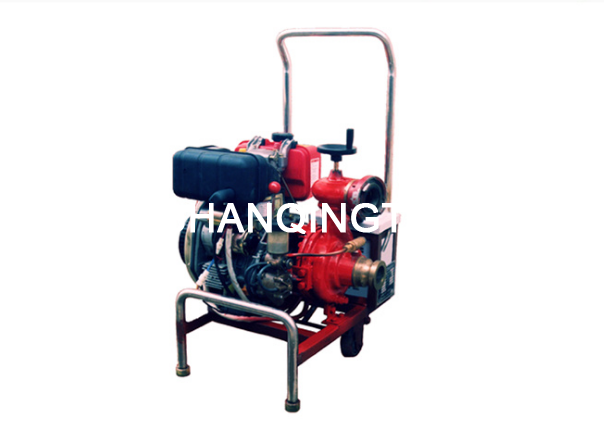

CWY marine emergency fire pump comes with a copper impeller, a high‐quality stainless steel shaft, and a mechanically enclosed high‐seed diesel motor. It’s of light weight, compact structure, prompt starting, minimum space, fast delivering of water and good coaxially between the pump and the diesel in addition to hand pump and electric kick‐starting, making it an advanced equipment for marine fire extinguishing. It is mainly used for fire‐fighting in case power failure occurs to the ship thanks to its independent driving system of diesel. It is also applicable for fire‐fighting and water delivering in industrial and mining enterprises, harbors and docks, storehouse and yard etc.
Tech Parameter:
|
Model |
65CWY-25 |
65CWY-30 |
65CWY-40 |
|
Capacity(m3/h) |
20 |
25 |
30 |
|
Head(m) |
25 |
30 |
40 |
|
Speed(rpm) |
3600 |
||
|
Suction head(m) |
6--7 |
||
|
Running water time(s) |
Less than 35 second |
||
|
Weight(Electric start)kgs |
70(80) |
80(90) |
105(115) |
|
Power(Kw) |
2.5 |
4 |
6 |
|
Inlet/outlet(mm) |
65/50 |
||
|
Type |
fixed/portable |
||
|
Diesel model |
168F |
178F |
186F |
|
Fuel consumption(g/kw.h) |
290 |
285 |
280 |
|
Working time(H) |
4 |
3.7 |
3.5 |
|
Cooling |
Air cooling |
||
|
Staring |
hand / Electric |
||
|
Dimension -Hand start |
560x600x440 |
580x620x480 |
600x740x560 |
|
Electric start(mm) |
540x600x480 |
580x620x520 |
600x740x600 |
