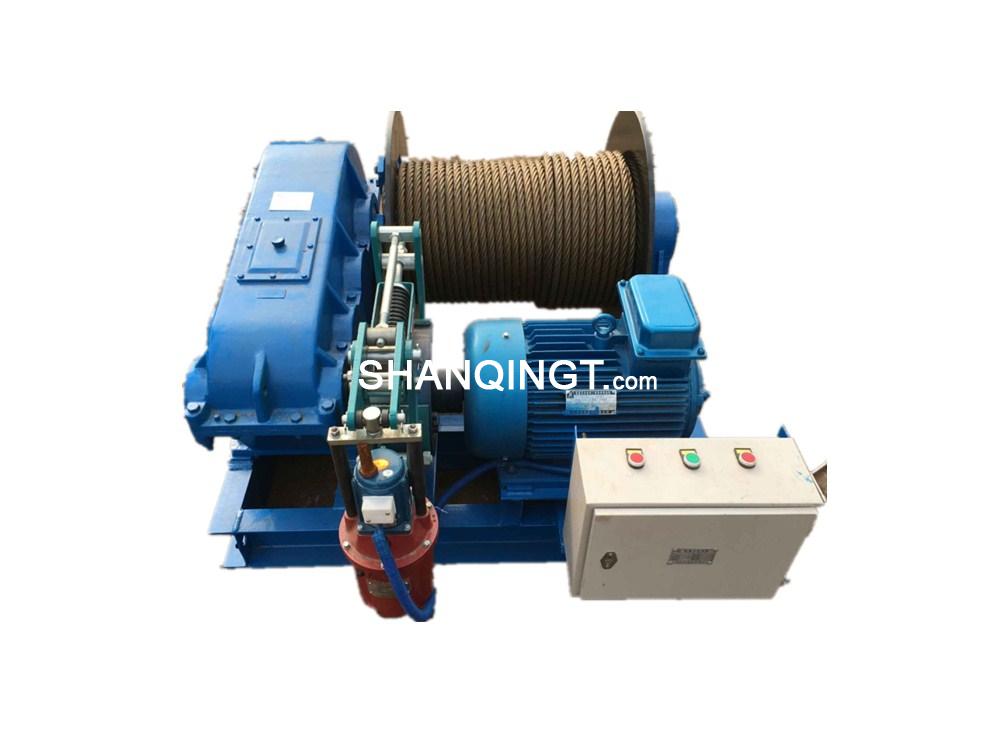

Mining Low Speed Winch

Product Item : 20
Category：Mining Winch
Product description：There are two types of JM Electric Mining Low Speed Winch: small pull capacity and large pull capacity. Large pull capacity mostly are applicable to port building, traction of shipyard, steel structur
Inquiry

There are two types of JM Electric Mining Low Speed Winch: small pull capacity and large pull capacity. Large pull capacity mostly are applicable to port building, traction of shipyard, steel structure transport and assemble, disassemble, pulling machines. Its feature is that line rope pull large, sometimes with rope guider for wire rope dispose trimly, safety and credible

Small pull capacity mostly are applicable for construction, lifting, disassembly, traction, assembly in construction company, mine, factory and so on.

Model		JM 2 T	JM 3 T	JM 5 T
Rated Line Pull KN		20	30	50
Total Transmission ratioI		54.9	88.6	119.34
Drum	Dia.XL MM	219X535	1273X594	325X640
Drum	Wire rope length M	180	150	200
Wire rope	Specification	6X19	6X19	6X19
	Diameter MM	12.5	15.5	19.5
	Lifting Speed M/MIM	16	16	9
motor	Model	YZR132M-6	YZR160M-6	YZR160L-6
	Power KW	7.5	11	11
	Speed R/MIM	960	960	960
Arrester brake model		TJ2-200	TJ2-200	YZW300/45
Dimension MM		980X880X530	1130X1020X550	1310X1240X800
Weight KG		425	585	950
