Description:

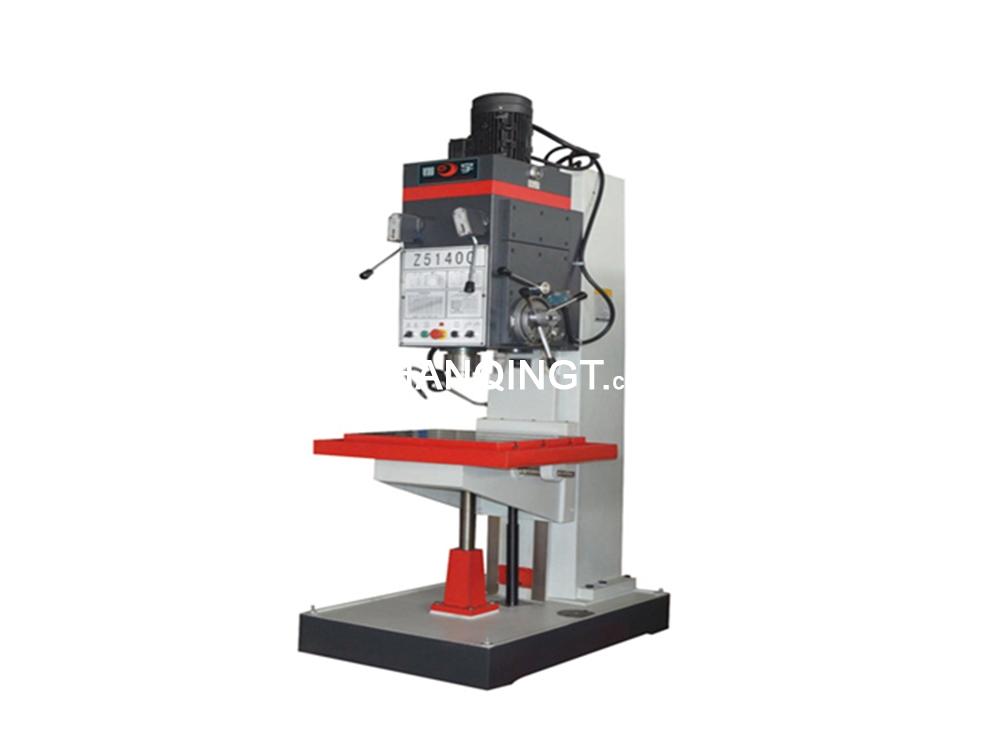

Before the vertical drilling machine is processed, the position of the workpiece on the table must be adjusted so that the center line of the machined hole is aligned with the tool axis. During machining, the workpiece is stationary and the spindle rotates in the sleeve and is axially fed with the sleeve. The table and headstock can be adjusted along the column rails to accommodate workpieces of different heights. As a kind of drilling machine, vertical drilling machine is also a relatively common metal cutting machine tool, which has the characteristics of wide application and high precision. Suitable for batch processing.
Parameter:ri
|
Model |
Z5140B |
|
Drilling diameter (mm) |
40 |
|
Spindle shaft taper |
MT4 |
|
Spindle max feed resistance（N） |
16000 |
|
Spindle Max torque (N.M) |
350 |
|
Spindle Span(mm) |
335 |
|
Spindle travel (mm) |
250 |
|
Headstock stroke(mm) |
200 |
|
Spindle speed series |
12 |
|
Feed series |
9 |
|
Spindle speed range(RPM) |
31.5-1400(12) |
|
Feed range(mm/r) |
0.056-1.80(9) |
|
Platform dimension(mm) |
560x480 |
|
Spindle end to table distance (mm) |
750 |
|
Main power(kw) |
3 |
|
Dimension(mm) |
1090*905*2530 |
|
Net weight(kg) |
1500 |
