General Description:

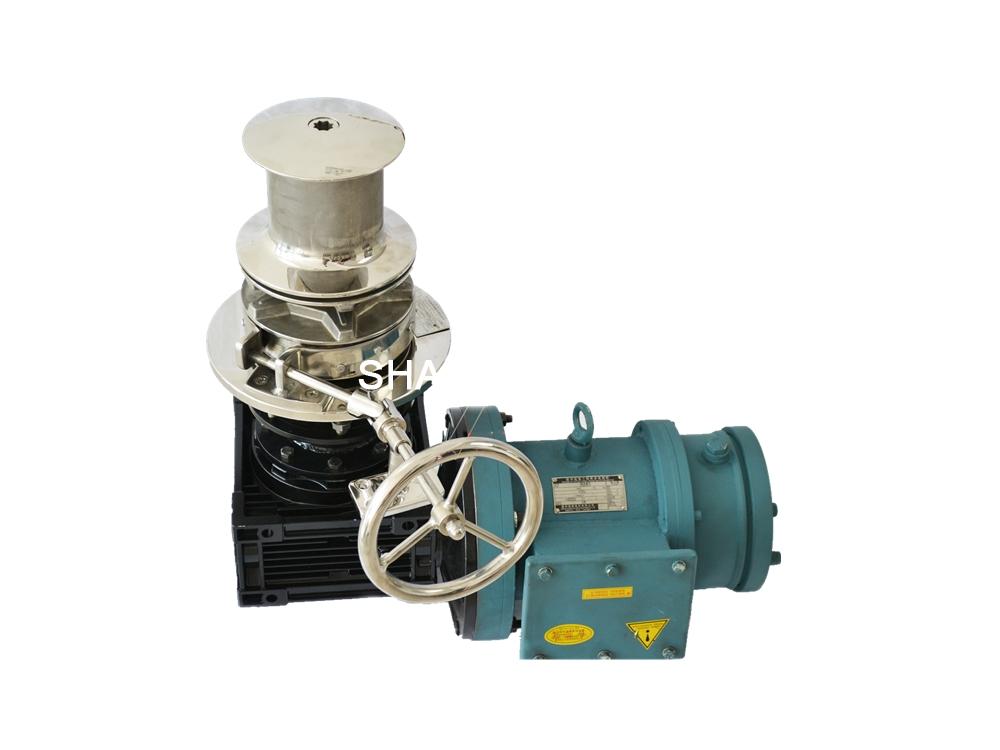

Stainless steel vertical windlass. Available in high or low profile, with different drives and for boats up to 70m. Windlass can use chains up to AM20.5mm with stud link in diameter.Possibility of 230V,400V.
With horizontally mounted AC Eletric motor and band brake.
Tech Parameter:
|
Model |
YDG-12.5 |
YDG-14 |
YDG-16 |
YDG-17.5 |
YDG-19 |
YDG-20.5 |
|
Motor power |
2.2KW |
3/1.2KW |
4.3/1.7KW |
5KW |
6/2.5KW |
7.5KW |
|
Motor supply |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
|
Max. lift load |
1200KG |
1400KG |
1900KG |
2100KG |
2400KG |
2700KG |
|
Working load |
700KG |
900KG |
1200KG |
1400KG |
1600KG |
1800KG |
|
Line speed |
17m/min |
17m/min |
18m/min |
18m/min |
18m/min |
18m/min |
|
Chain(AM-2) |
12.5mm |
14mm |
16mm |
17.5mm |
19mm |
20.5mm |
