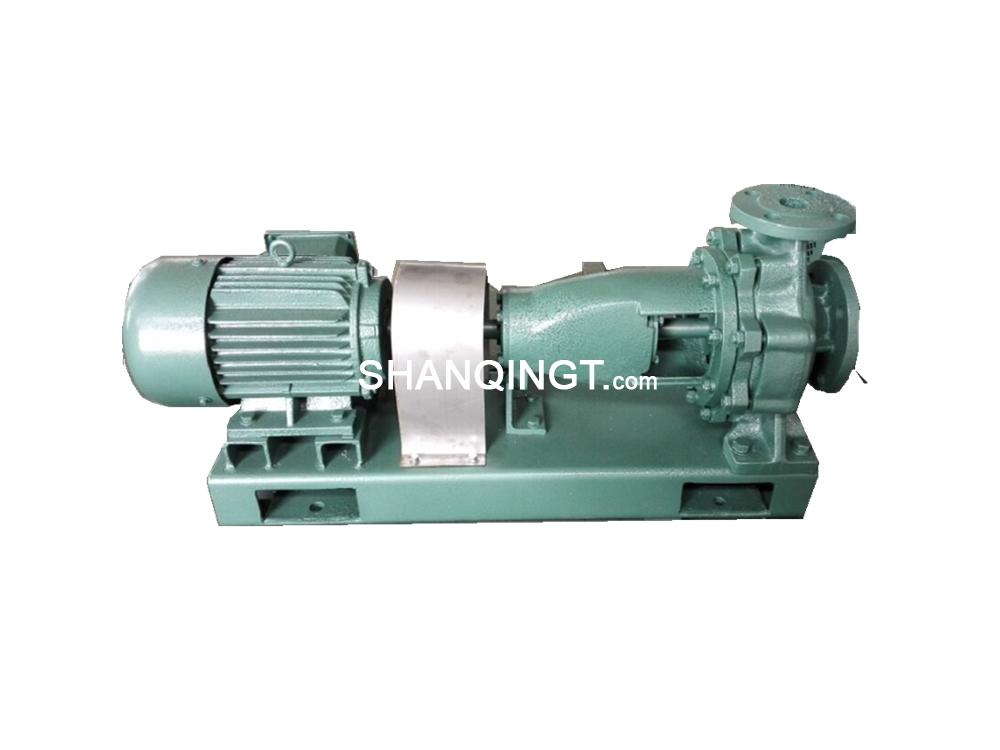

CWL Marine centrifugal pump

Product Item : 38
Category：Water Pump
Product description：CWL Marine centrifugal pump
Inquiry

General description:

CWL Series pump is a horizontal single-suction centrifugal pump, seal form for mechanical seal, also can use packing seal. Applicable to ships motor driven water and cooling water pump, drainage pumps, sanitary drains and household water pumps, transmission medium temperature should be lower than75℃. This Series of pumps can be factory, mine, city water supply and rural irrigation and other uses. According to user applications, in the performance of the same circumstances, the use of different materials, by the user in the order presented.

Tech Parameter:

	380V/50hz			440V/60hz
Model	Capacity	Head	Power	Capacity	Head	Power
	m3/h	m	kw	m3/h	m	kw
32CWL-4	4	21	1.1	5	30	2.2
32CWL-3	4	30	1.5	5	43	2.2
40CWL-5	8	21	1.1	10	30	2.2
40CWL-4	8	30	2.2	10	43	3
40CWL-3	8	42	3	10	60	4
50CWL-6	12	21	1.5	14	30	3
50CWL-4.5	12	30	3	14	43	4
50CWL-4	12	42	4	14	60	5.5
50CWL-8	21	21	2.2	25	30	4
50CWL-7	21	30	4	25	43	5.5
50CWL-5	21	42	5.5	25	60	7.5
50CWL-3.5	21	60	7.5	25	86	15
65CWL-11	35	21	4	43	30	7.5
65CWL-8	35	30	5.5	43	43	11
65CWL-6	35	42	7.5	43	60	15
80CWL-14	60	21	5.5	72	30	11
80CWL-11	60	30	7.5	72	43	15
80CWL-8	60	42	11	72	60	22
80CWL-6	60	60	18.5	72	86	30
80CWL-5.5	60	75	22	72	108	37
100CWL-18	100	21	11	120	30	15
100CWL-14	100	30	15	120	43	22
100CWL-11	100	42	18.5	120	60	37
100CWL-8	100	60	30	120	86	55
100CWL-6	100	85	37	120	122	75
150CWL-18	160	13	11	192	18.5	15
200CWL-12	300	30	37	360	43	75
200CWL-18	400	21	30	480	30	55
