General description:

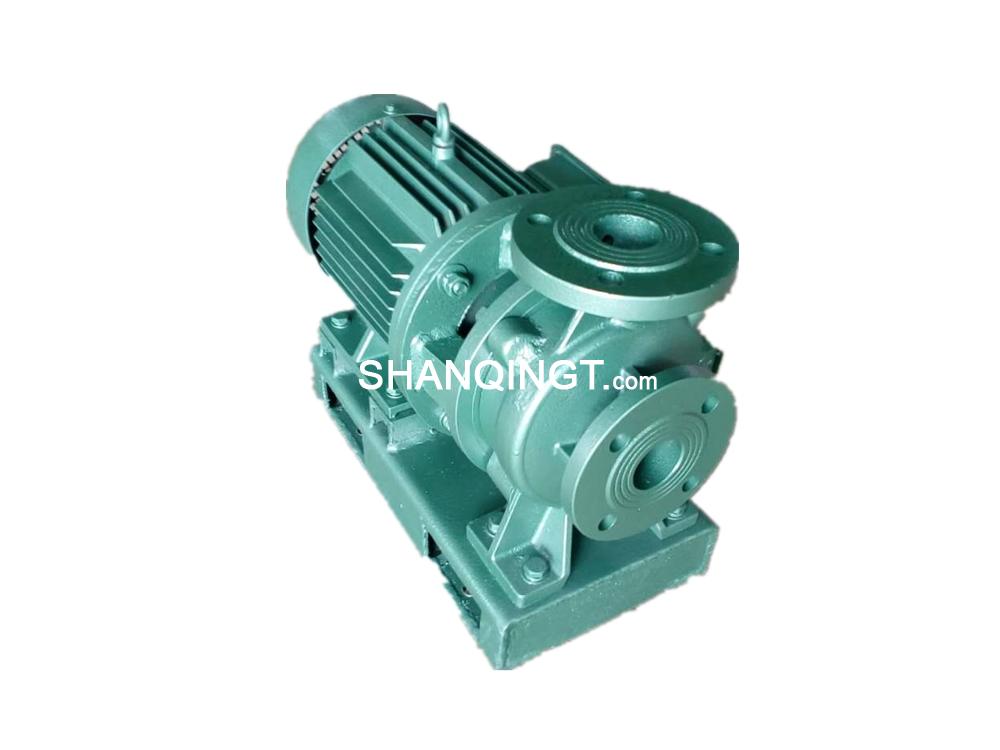

PVHW type series Horizontal single-stage single-suction Marine centrifugal pump according to the type ISW, the IR type centrifugal pump performance parameters, installation of ISO2858 standard, adopt domestic excellent hydraulic model optimization design and become ISW the ideal of a new generation of high efficiency and energy saving products. As ballast pump is suitable for various ships, warships, bilge pump, cooling pump, fire pump, can also be used for seawater desalination device and equipment matching with the pump.
Tech Parameter:
|
Type |
Capacity (m3/h) |
Lift (m) |
Efficiency (%) |
Speed (r/min) |
Power (kw) |
NPSH (m) |
|
25-160 |
2.8 4 5.2 |
33 32 30 |
24 32 33 |
2900 |
1.5 |
2.3 |
|
32-160 |
3.5 4.5 6 |
34 32 26 |
36 |
2900 |
1.1 |
2.3 |
|
32-200 |
3.5 4.5 5.5 |
53 50 45 |
32 |
2900 |
3 |
2.3 |
|
40-160 |
3.75 6.3 7.5 |
34 32 30 |
34 40 40 |
2900 |
2.2 |
2.3 |
|
40-200 |
3.75 6.3 7.5 |
52 50 48 |
25 33 32 |
2900 |
4 |
2.3 |
|
40-250 |
3.75 6.3 7.5 |
82 80 74 |
23 28 28 |
2900 |
7.5 |
2.3 |
|
50-125 |
7.5 12.5 15 |
21.5 20 18.5 |
48 58 57 |
2900 |
1.5 |
2.3 |
|
50-160 |
7.5 12.5 15 |
33.5 32 30.5 |
45 52 52 |
2900 |
3 |
2.3 |
|
50-200 |
7.5 12.5 15 |
52 50 48 |
36 46 46 |
2900 |
5.5 |
2.3 |
|
50-250 |
7.5 12.5 15 |
82 80 78.5 |
28 38 41 |
2900 |
11 |
2.3 |
|
65-200 |
15 25 30 |
53 50 47 |
48 58 59 |
2900 |
7.5 |
2.5 |
|
80-160 |
30 50 60 |
36 32 29 |
63 72 72 |
2900 |
7.5 |
3 |
|
80-200 |
30 50 60 |
53 50 47 |
54 68 70 |
2900 |
15 |
3 |
|
100-160 |
56 93.5 112 |
36 32 28 |
70 78 75 |
2900 |
15 |
4.5 |
|
100-250 |
60 100 120 |
87 80 74.5 |
61 72 73 |
2900 |
37 |
4 |
