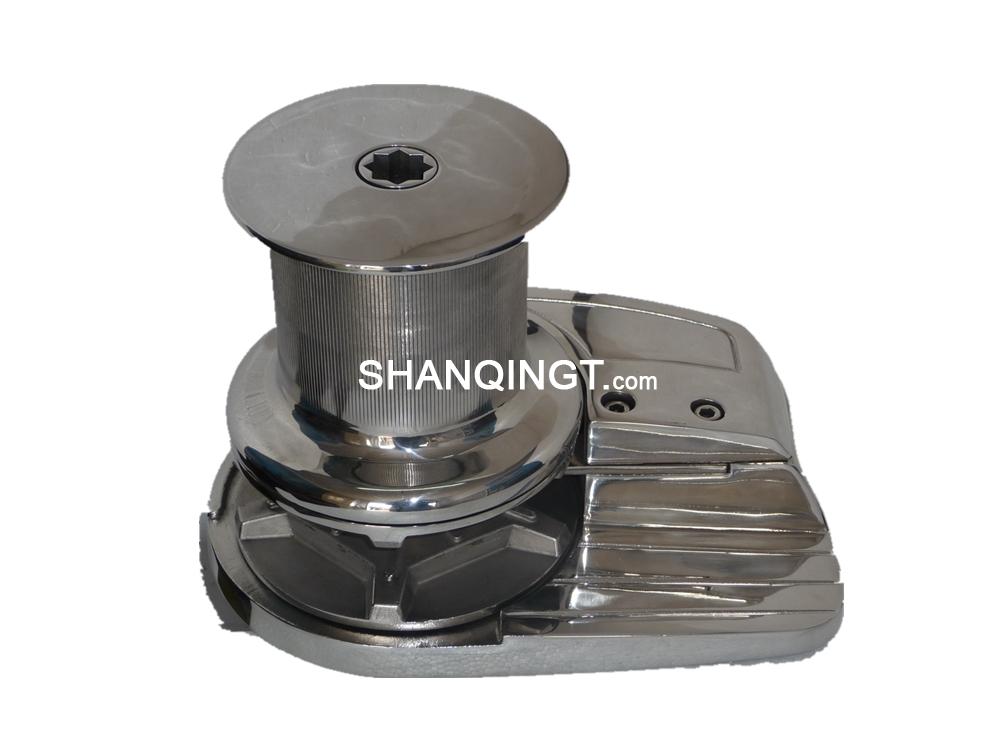

General Description:
1. Designed for traditional rope and chain combination anchor rodes.
2. line hauling from any direction.
3. High quality finish on above deck components.
4. Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade SS bolts.
5. Compact, reliable gearbox, made of corrosion resistant material.
6. Heavy duty ,dual direction motors, designed for marine winches.
7. Easily disassembled for servicing.
8. Fit include hand-switch, foot-switch, control box and wrench.
Tech Parameter:
|
Model
|
Weight |
Power |
Motor |
No load |
Max. |
Max. |
Line |
Rope |
Chain |
|
Net(DC) |
DC |
(W) |
absorption |
load |
Pull |
Speed |
size |
size |
|
|
YDVC-003 |
7kg |
12V/24V |
400 |
30A |
125kg |
420kg |
30m/min |
12mm |
6-7mm |
|
YDVC-004 |
9kg |
12V/24V |
600 |
60A |
210kg |
600kg |
25m/min |
12mm |
6-7mm |
