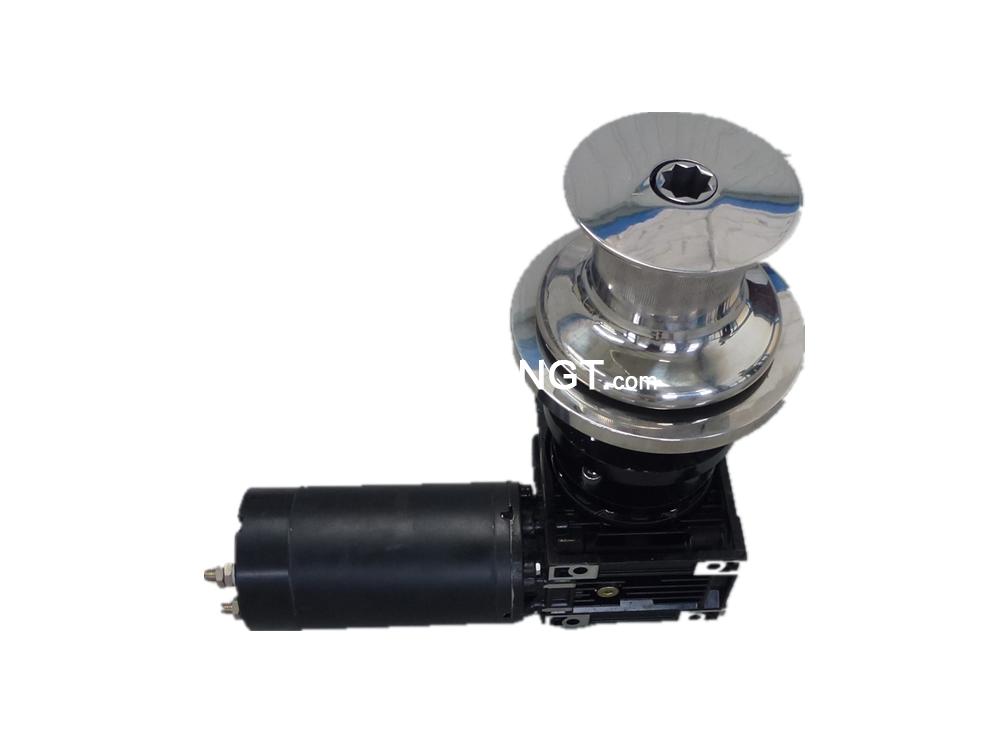

General Description:
1. Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.
2. line hauling from any direction.
3. High quality finish on above deck components.
4. Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts.
5. Compact, reliable gearbox, made of corrosion resistant material.
6. Heavy duty, dual direction motors, designed for marine winches.
7. Easily disassembled for servicing.
8. Fit include hand-switch, foot-switch, control box and wrench.
Tech Parameter:
|
Model
|
Weight |
Power |
Motor |
No load |
Max. |
Max. |
Line |
Rope |
Chain |
|
Net(DC) |
DC |
(W) |
absorption |
load |
Pull |
Speed |
size |
size |
|
|
YDVC-001 |
17KG |
12V/24V |
600 |
50A |
190kg |
680kg |
30m/min |
12mm |
6-7mm |
|
YDVC-002 |
22KG |
12V/24V |
1000 |
100A |
350kg |
950kg |
25m/min |
14-16mm |
8-10mm |
