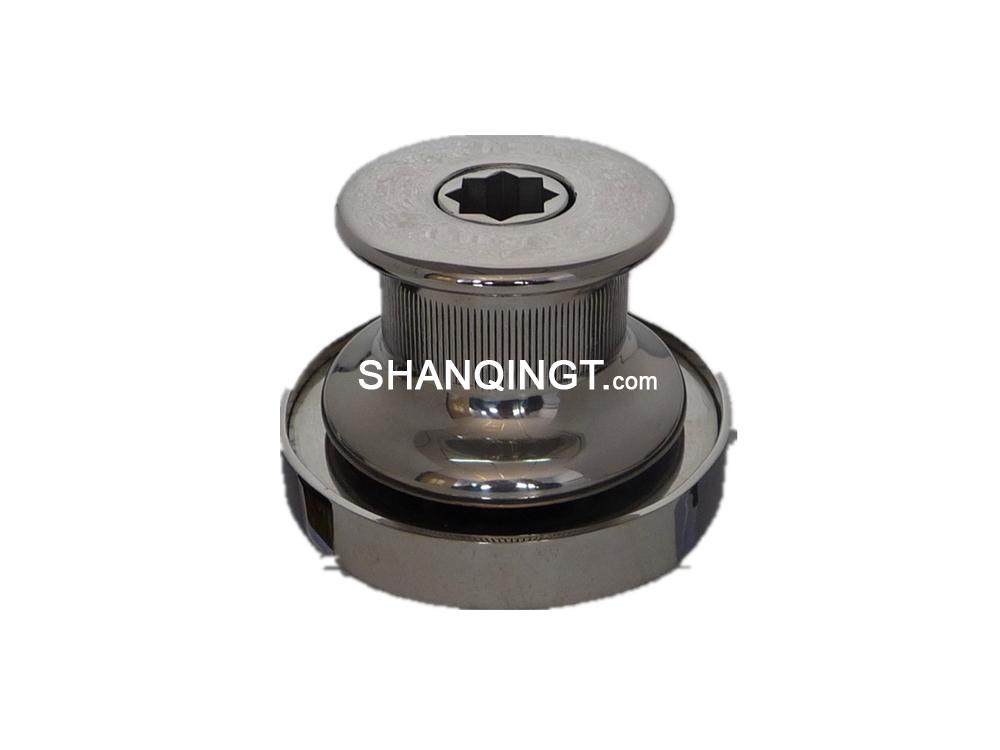

General Description:
1. Polished stainless steel finish.
2. Fluted capstan for line grip.
3. Reversible motor.
4. Easily disassembled for servicing:disassemble from top and bottom.
5. Large capstan drums for increased line hold.
6. The gearbox is driven by a vertically mounted below deck.
7. Fit include hand-switch, foot-switch, control box and wrench.
Tech Parameter:
|
Model
|
Weight |
Power |
No load |
Motor |
Max. |
Max. |
Line |
Rope |
|
Net(DC) |
DC |
absorption |
(W) |
load |
Pull |
Speed |
size |
|
|
VC-001 |
7kg |
12V/24V |
60A |
600 |
160kg |
320kg |
22m/min |
8-10mm |
|
VC-002 |
11kg |
12V/24V |
80A |
1000 |
200kg |
380kg |
22m/min |
10-12mm |
|
VC-003 |
14kg |
12V/24V |
105A |
1200 |
260kg |
420kg |
20m/min |
14-16mm |
|
VC-004 |
18kg |
12V/24V |
150A |
1600 |
340kg |
900kg |
20m/min |
16-18mm |
|
VC-005 |
39kg |
380V |
22A |
2000 |
620kg |
880kg |
22m/min |
18-20mm |
|
VC-006 |
48kg |
380V |
14A |
3000 |
840kg |
1230kg |
22m/min |
20-22mm |
