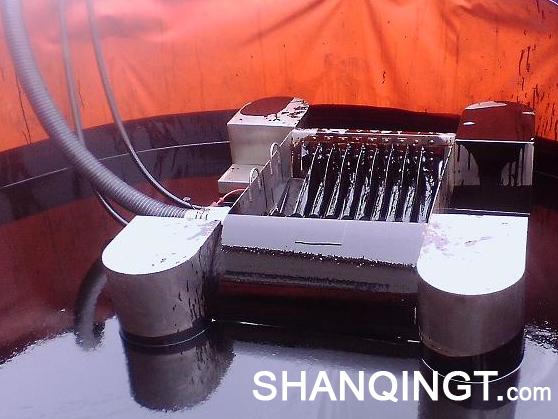

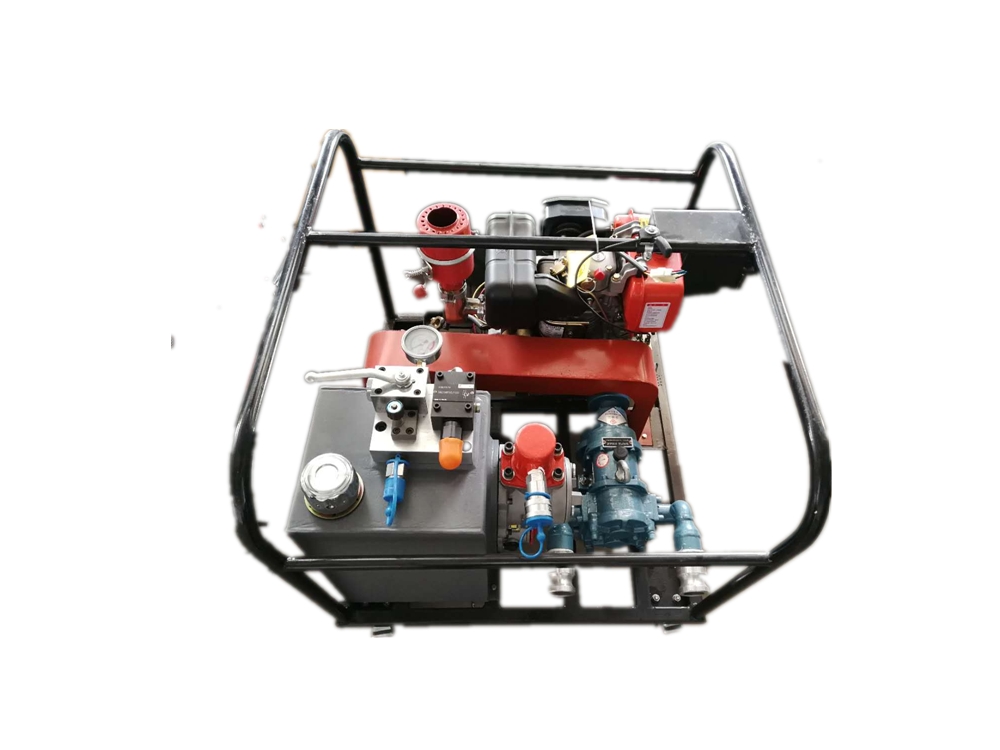

Disc skimmer is a robust, efficient and handy device recovering oil spill on water. It consists of a power pack, a floatable head and oil hoses between the head and power pack. These devices have been widely used on open seas, rivers, harbors, lakes and ponds.

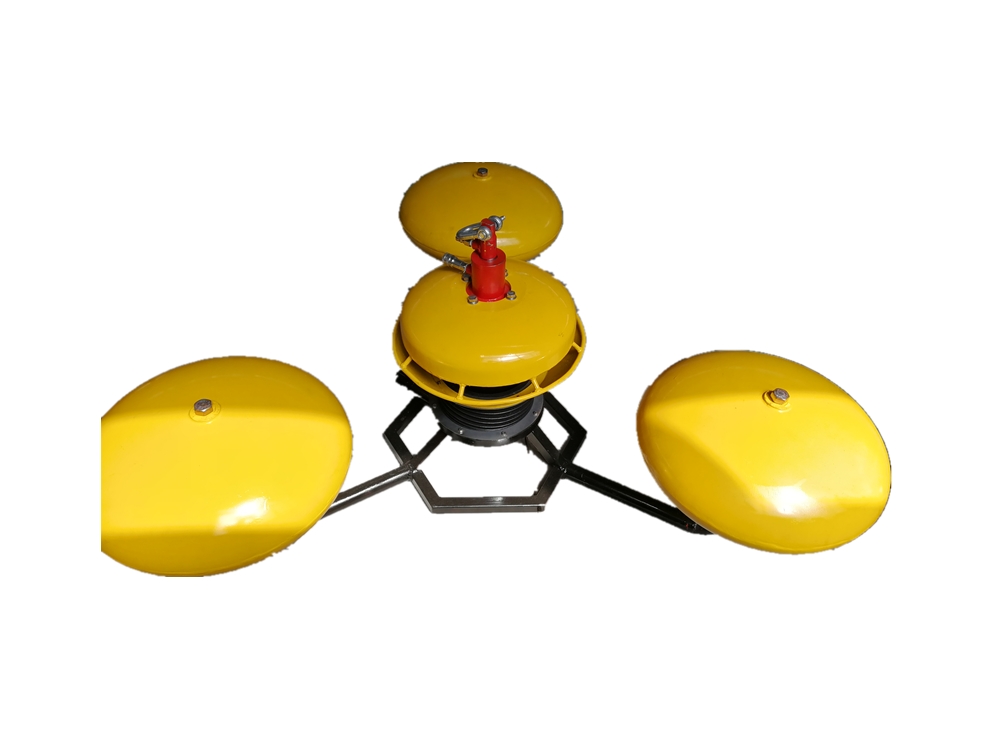

The head's float has sealed shell and filled with foam plastic and has double buoyancy insurance. It can recover all floatable oil such as high viscosity crude, middle and low viscosity lubricant, fuel, and plant oil.
The disc speed can be easily adjusted and the recovered oil has little free water.
|
Model/Parameter |
ZSJ3 |
ZSJ5 |
ZSJ10 |
ZSJ20 |
ZSJ30 |
ZSJ60 |
|
rotate speed (R/M) |
40-100 |
40-100 |
40-100 |
40-200 |
40-300 |
40-600 |
|
Working pressure(Mpa) |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
5~8 |
|
Flow rate of oil pump(m³/h) |
3 |
5 |
10 |
20 |
30 |
60 |
|
recovery capability(m³/h) |
3 |
5 |
10 |
20 |
30 |
60 |
|
drive power(diesel engine or explosion-proof motor)KW |
4.0/2.2 |
4.0/3 |
6.3/4 |
4.0+6.3/7.5 |
14.5/11 |
21/15 |
|
main unit weight (Kg) |
18 |
55 |
70 |
120 |
160 |
200 |
|
weight of power station (KG) |
80 |
100 |
115 |
255 |
500 |
550 |
|
diameter of oil discharge hose |
2” |
2” |
2” |
2.5” |
3” |
4” |
