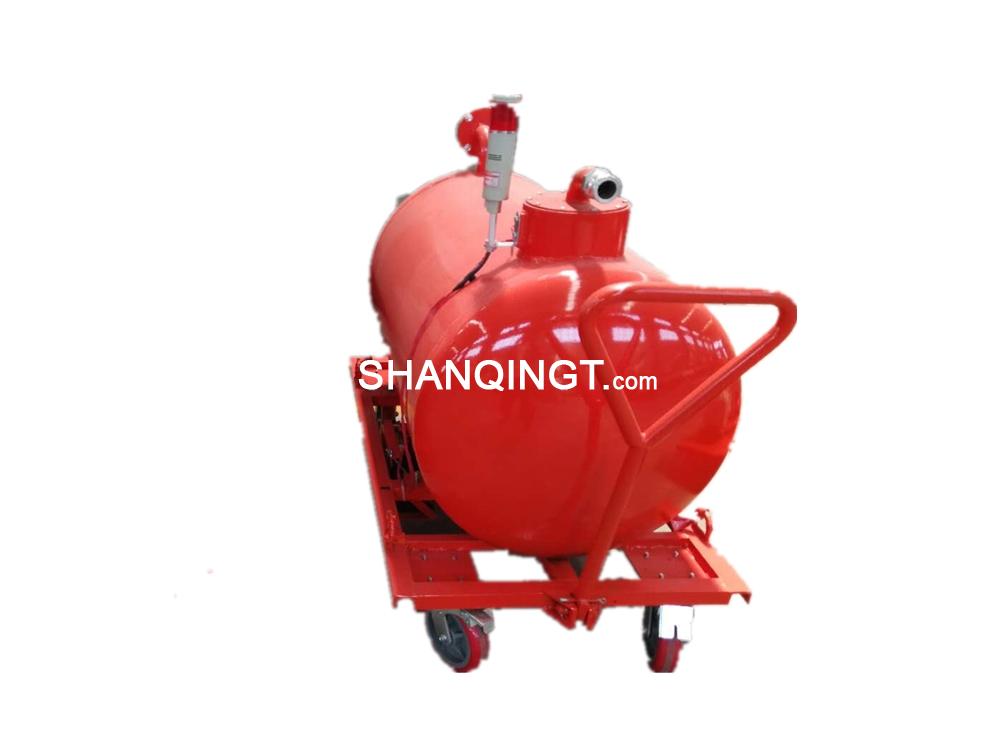

The vacuum skimmer is composed of skimmer’s main unit (buffer tank andsuction head) and power station.
The power pack works under the diesel engine or electrical machine which drives vacuum pump to recovery oil spill in beach, land and water via suction head. And then convey the oil spill to the storage device in shore via the
pressure from the vacuum pump.
The vacuum skimmer can be widely used in beach, shoal, reef, land or other site where there are oil spills to be recovered. It can also be used on the water of harbors, oil ports, wharfs, rivers, lakes, shipyards, ship-breaking yards,petroleum and chemical industries, power plants, wastewater treatment plants and other site where are oil spills to be recovered.
|
Model / Parameter |
ZKJ-5 |
ZKJ-10 |
ZKJ-20 |
ZKJ-30 |
ZKJ-60 |
|
Working pressure(Mpa) |
3-6 |
3-6 |
3-6 |
5-6 |
5-8 |
|
Max. skimming rate（m³/h） |
5 |
10 |
20 |
30 |
60 |
|
Max. vacuum |
-0.044mpa |
-0.044mpa |
-0.044mpa |
-0.044mpa |
-0.044mpa |
|
buffer tank diameter( mm) |
Φ710 |
Φ710 |
Φ710 |
Φ840 |
Φ900 |
|
oil pumping station power(diesel engine or explosion-proof motor)（KW） |
4.0/3 |
6.3/4 |
6.3/5.5 |
14.5/7.5 |
14.5/11 |
