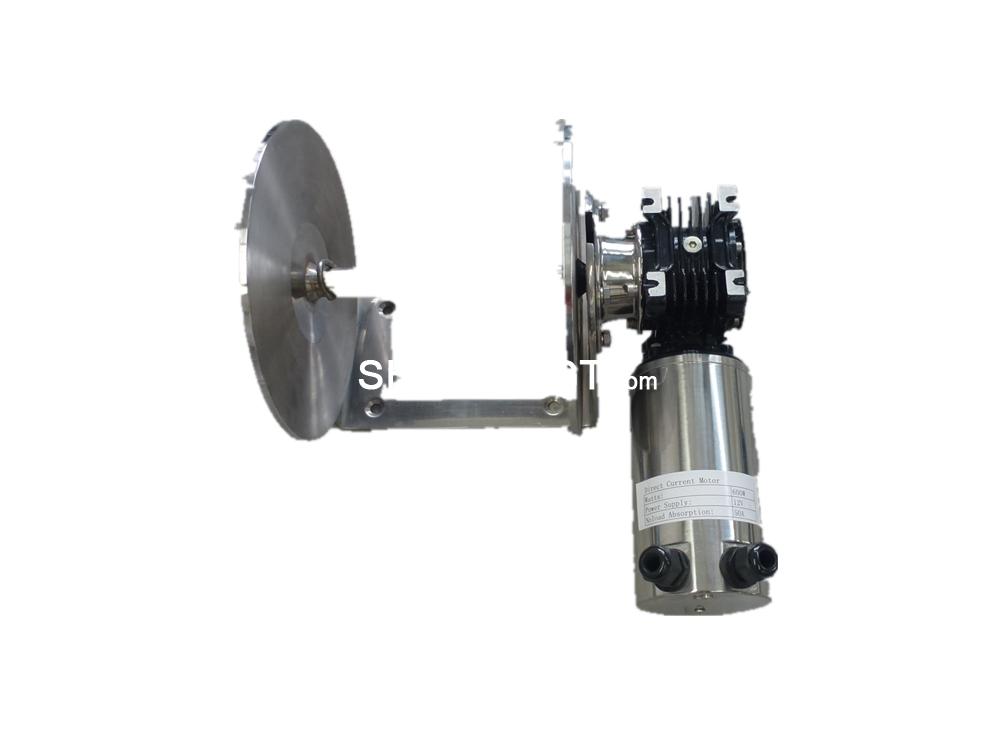

General Description:
Perfect anchoring system for fishing boat. Heavy duty motor, high speed, slient operation with bearing constructed from 316 marine grade stainless steel. Simply drive, push button and lowering anchor quickly and smoothly with the speed around 80 to 90 feet per minute.
1. Fully sealed gearbox is riven by a vertically mounted.
2. Gearbox housing are marine grade alloy and drum is stainless steel.
3. The speed of retrieval increases with each revolution.
4. The rope and chain dose not twist and tangle causing the unit to malfunction.
5. The motor can be mounted at 30,45 and 90 degrees to suit the configuration of the anchor as well.
6. To protect the motor, the circuit breaker will trip out if there is a power overload.
7. Easily disassembled for servicing.
8. Fit include hand-swich and solenoiduan, circuit breaker.
Tech Parameter:
|
Model
|
Weight |
Power |
Motor |
No load |
Max. |
Max. |
Line |
Rope |
Chain |
|
Net(DC) |
DC |
(W) |
absorption |
load |
Pull |
Speed |
size |
size |
|
|
YDW-010 |
11KG |
12V/24V |
400 |
30A |
120KG |
320KG |
30m/min |
6mm |
5-6mm |
|
YDW-011 |
16KG |
12V/24V |
600 |
50A |
190KG |
600KG |
30m/min |
6-8mm |
5-6mm |
|
YDW-012 |
24KG |
12V/24V |
1000 |
90A |
350KG |
750KG |
25m/min |
8-10mm |
6-8mm |
|
YDW-013 |
34.5KG |
12V/24V |
1400 |
120A |
480KG |
900KG |
20m/min |
10-14mm |
8-10mm |
|
YDW-014 |
45KG |
12V/24V |
1600 |
135A |
680KG |
1200KG |
20m/min |
10-14mm |
8-10mm |
|
YDW-015 |
115KG |
24V/48V |
2500 |
105A |
980KG |
1800KG |
20m/min |
24-30mm |
10-13mm |
