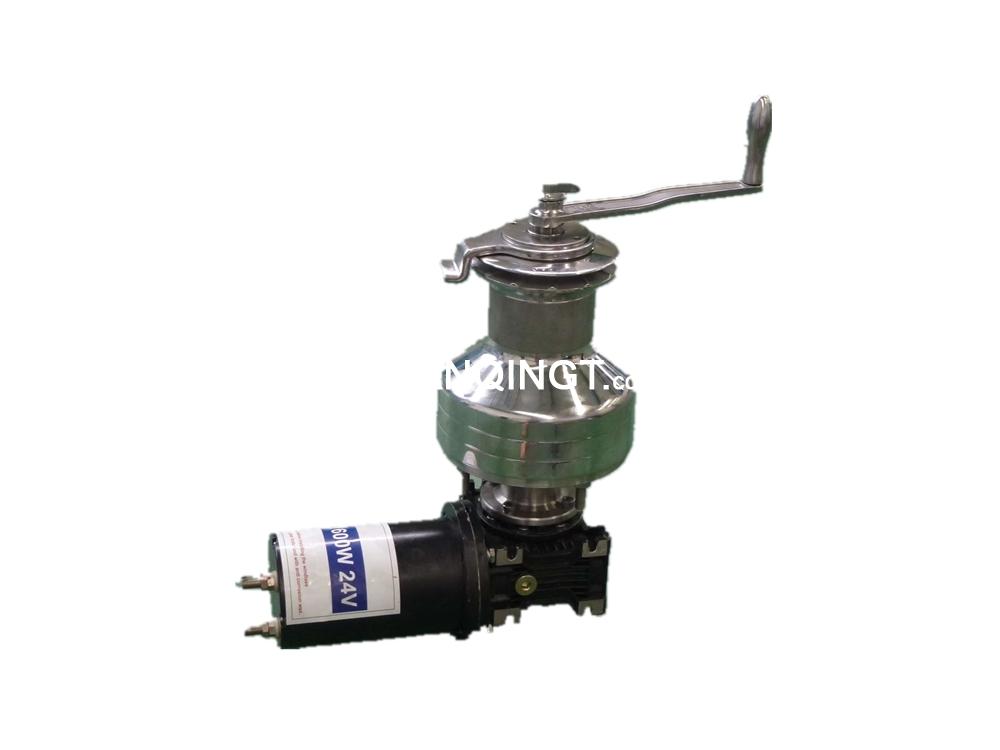

General Description:
A sailing winch could be serviced by the boat owner without any tools,and can either be fitted in the conventional manner,or without removing the drum,to speed up installation.
Advantages:
1. High-quality polished surface makes for a beautiful appearance.
2. The whole winch is made by 316 stainless steel.
3. Have good performance in waterproof, rust-resistant.
4. Push botton power.
5. Quiet operation.
6. Manual override.
7. Easy to install.
8. Included motor units, control box and accessories.
Tech Parameter:
|
Model (AC) |
Drum Dia |
Base Dia |
Line Entry |
Line size |
Motor |
|
(mm） |
(mm） |
(mm） |
(mm） |
（W) |
|
|
YDEW-001 |
74 |
148 |
79 |
8-12 |
400 |
|
YDEW-002 |
87 |
168 |
84 |
8-14 |
600 |
|
YDEW-003 |
93 |
181 |
86 |
8-14 |
800 |
|
YDEW-004 |
105 |
205 |
115 |
8-16 |
1200 |
|
YDEW-005 |
118 |
231 |
122 |
8-18 |
1600 |
