General Description:

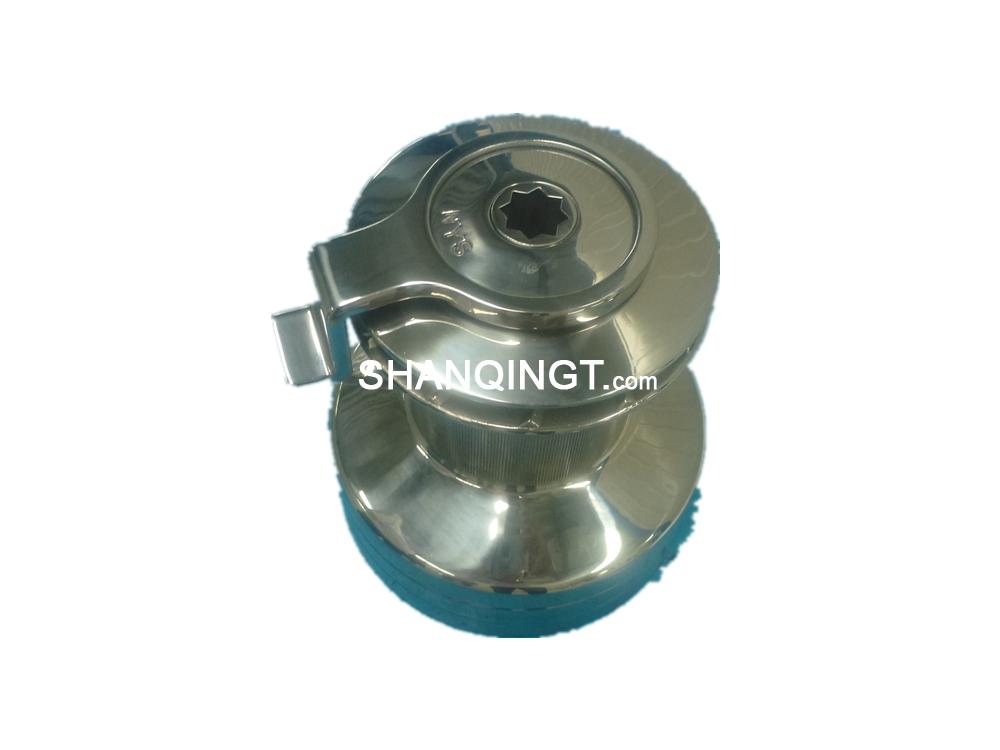

Sailing winches are designed for boatbuilders and sailers. Winches feather mirror-polished drums with stainless steel tops, self-sailing jaws. We’ve completely covered the winch tops so clothing or fingers don’t get caught in moving parts. Available in 1 or 2 speed self-sailing styles.
Advantages:
1. No tools are required to service the winches
2. The drum’s gripping surface is shaped for each winch size and drum material and features ribs to maximize gripping power and greatly reduce line wear.
3. The whole winch mirror-polished, whole stainless steel.
4. The cast stainless steel feeder arm position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit.
Tech Parameter:
|
Model |
Gear Ratio |
Power Ration |
SWL (KG) |
Weight(kg) |
Drum |
Base |
Line |
Line |
||
|
1st |
2nd |
1st |
2nd |
Dia |
Dia |
Size |
Entry |
|||
|
(mm) |
(mm) |
(mm) |
(mm) |
|||||||
|
YDSW-001 |
2:1 |
|
16:1 |
|
570 |
3.8 |
65.7 |
121 |
8-12 |
58 |
|
YDSW-002 |
2:1 |
4.5:1 |
14.2:1 |
29:1 |
690 |
5.5 |
74 |
138 |
8-12 |
69 |
|
YDSW-003 |
1.8:1 |
6:1 |
13.5:1 |
40.5:1 |
790 |
6.5 |
74 |
148 |
8-12 |
79 |
|
YDSW-004 |
2.5:1 |
7.8:1 |
13.8:1 |
44.6:1 |
1200 |
9.8 |
87 |
168 |
8-14 |
84 |
|
YDSW-005 |
2.8:1 |
9.2:1 |
13.8:1 |
48.8:1 |
1250 |
12.3 |
93 |
181 |
8-14 |
86 |
|
YDSW-006 |
3:1 |
11.5:1 |
13.9:1 |
55:1 |
1480 |
17.2 |
105 |
205 |
8-16 |
115 |
|
YDSW-007 |
3.2:1 |
15:1 |
13.5:1 |
65:1 |
1700 |
23.5 |
118 |
231 |
8-18 |
122 |
