General Description:

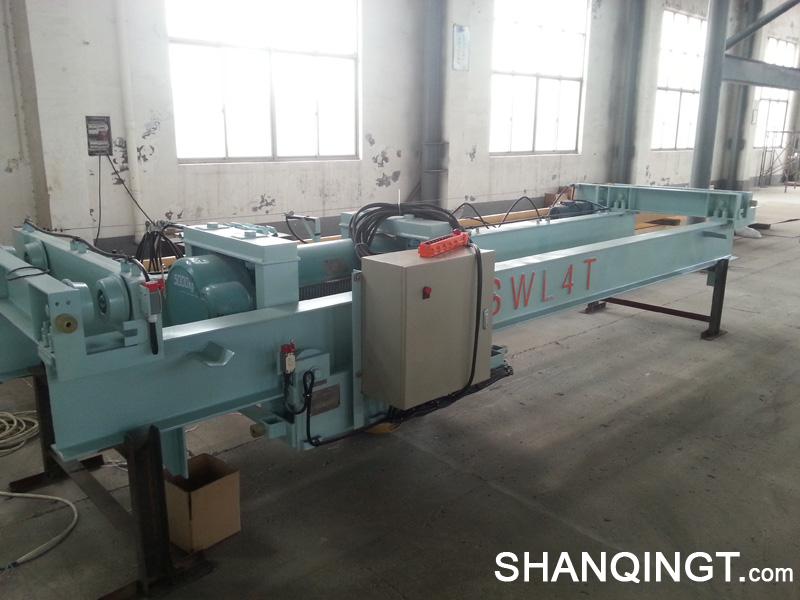

The engine room crane is a special equipment for the maintenance of equipment and lifting spare parts. According to the type of traveling beam there are single beam and double beam. According to the power source there are threekinds of manual electric and pneumatic power supply.
Approval by CCS, BV, ABS, DNV-GL,RINA and etc.
Tech Parameter:
|
Type |
SWL T |
Hoisting speed m/min |
Traveling speed m/min |
List+Trim Degree |
Motor power kw |
|
EC05 |
0.5 |
0.8/8 |
6--12 |
5+2 |
0.2/0.8 |
|
EC10 |
1.5 |
0.8/8 |
6--12 |
5+2 |
0.2/1.5 |
|
EC20 |
2 |
0.8/8 |
6--12 |
5+2 |
0.4/3 |
|
EC30 |
3 |
0.8/8 |
6--12 |
5+2 |
0.8/4.5 |
|
EC40 |
4 |
0.8/8 |
6--12 |
5+2 |
0.8/7.5 |
|
EC50 |
5 |
0.8/8 |
6--12 |
5+2 |
0.8/7.5 |
|
EC80 |
8 |
0.8/8 |
6--12 |
5+2 |
1.5/13 |
|
EC100 |
10 |
0.8/8 |
6--12 |
5+2 |
1.5/15 |
|
EC125 |
12.5 |
0.8/8 |
6--12 |
5+2 |
2.2/22.5 |
