General Description:

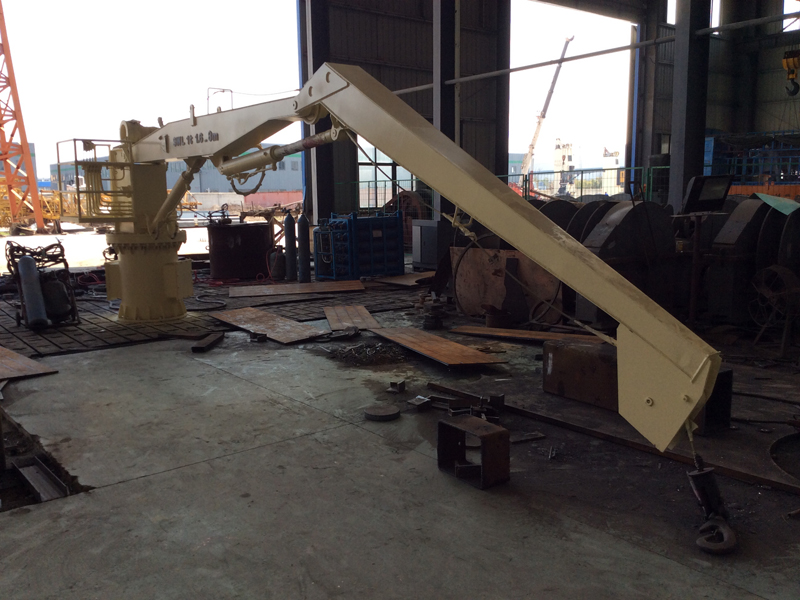

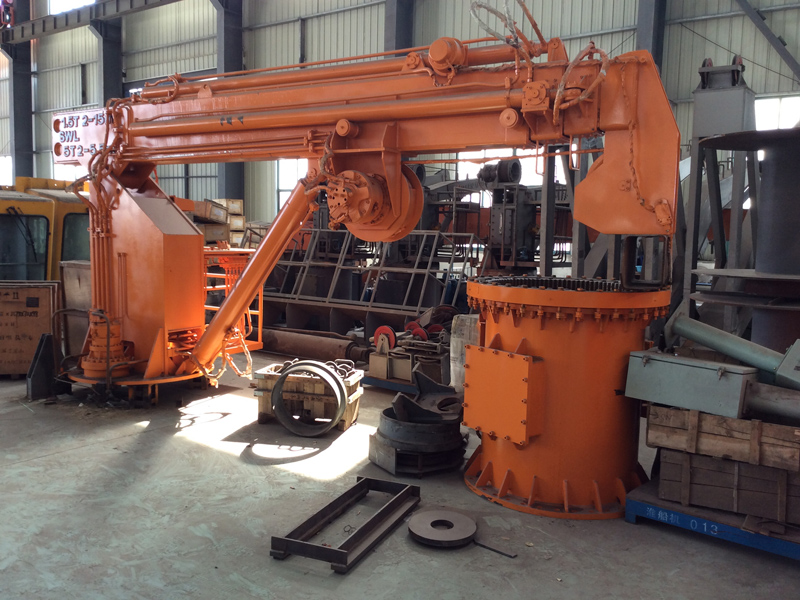

Cargo hose handling crane is for lifting and transiting the cargo and hose on board the vessel.
which through oil cylinder luffing, hoisting and hydraulic slewing device realizing 360 degree rotation. By Electirc driven or Hydraulic driven. Approval by CCS, BV, ABS, DNV-GL,RINA and etc.
Tech Parameter:
|
Type |
Working load(kn) |
Max.working Radius(m) |
Hoisting speed(m/min) |
Slewing speed(r/min) |
Luffing time(S) |
Hoisting height(m) |
Slewing angle(Deg) |
Motor power(kw) |
|
SQ10 |
10 |
6-18 |
0-15 |
0.7 |
70 |
30 |
0-360 |
11-15 |
|
SQ20 |
20 |
6-18 |
0-15 |
0.7 |
70 |
30 |
0-360 |
11-18.5 |
|
SQ30 |
30 |
6-18 |
0-15 |
0.7 |
70 |
30 |
0-360 |
15-22 |
|
SQ50 |
50 |
12-20 |
0-15 |
0.7 |
70 |
30 |
0-360 |
22 |
|
SQ80 |
80 |
12-20 |
0-15 |
0.7 |
70 |
30 |
0-360 |
37 |
|
SQ100 |
100 |
12-20 |
0-15 |
0.7 |
70 |
30 |
0-360 |
45 |
|
SQ150 |
150 |
12-25 |
0-15 |
0.7 |
70 |
40 |
0-360 |
75 |
|
SQ200 |
200 |
12-25 |
0-10 |
0.7 |
70 |
40 |
0-360 |
75 |
|
SQ250 |
250 |
12-25 |
0-10 |
0.7 |
70 |
40 |
0-360 |
75 |
