General Description:

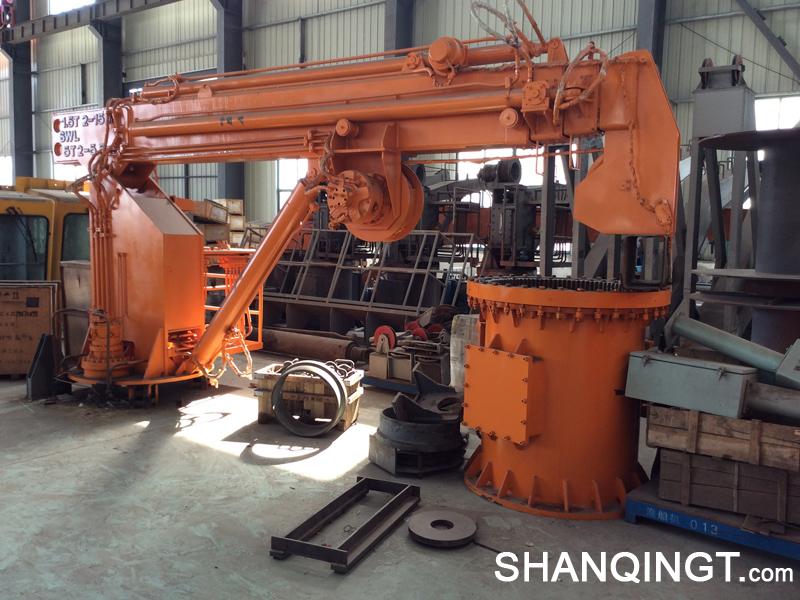

This crane is electric or Electro hydraulic pedestal mounted type with telescope jib from minimum to maximum working radius.
All mechanical, hydraulic and electric components used in the crane are selected on the basis of their use and the reuirements of the strength and safety.
Approval by CCS, BV, ABS, DNV-GL,RINA and etc.
Tech Parameter:
|
Type |
SWL T |
Outreach(m) Max./min. |
Hoisting speed m/min |
Slewing speed r/min |
List+Trim Degree |
Motor power kw |
|
TC30 |
3 |
15/2.6 |
0--20 |
0-1 |
5+2 |
22.5 |
|
TC50 |
5 |
15/2.6 |
0--20 |
0-1 |
5+2 |
35 |
|
TC80 |
8 |
15/2.6 |
0--20 |
0-1 |
5+2 |
60 |
|
TC100 |
10 |
15/2.6 |
0--20 |
0-1 |
5+2 |
75 |
|
TC150 |
15 |
15/2.6 |
0--20 |
0-1 |
5+2 |
110 |
