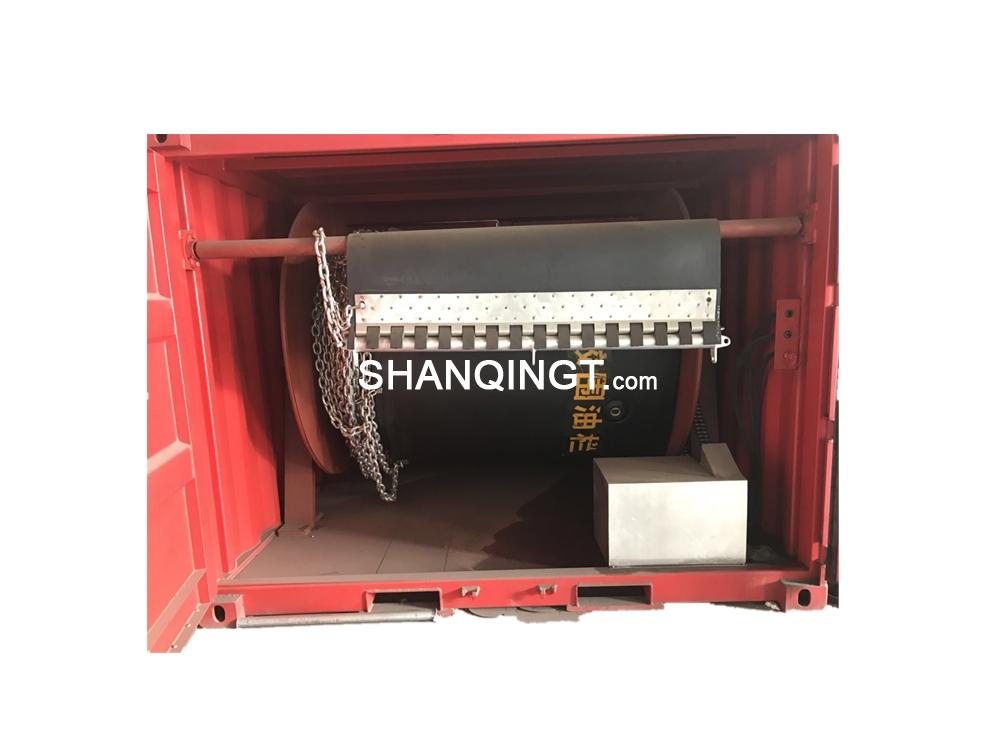

Inflatable rubber boom is specially developed for the containment of oil floating on the surface of water. It is suitable for use in most harbors, terminals and sheltered coastal areas. Shifting in response to an emergency, its main accessories include a power station, an inflator, a tractor, a reel frame and a container. It has been selected by many offshore oil spill response organizations due to its durability, sea-keeping, ease of maintenance and stability under tow.
|
Model /Parameter |
WQJ800 |
WQJ1000 |
WQJ1200 |
WQJ1500 |
WQJ1800 |
WQJ2000 |
WQJ2600 |
|
Overall height(mm) |
800 |
1000 |
1200 |
1500 |
1800 |
2000 |
2600 |
|
Freeboard(mm) |
280 |
360 |
400 |
500 |
560 |
600 |
810 |
|
Draft(mm) |
370 |
430 |
590 |
780 |
950 |
1100 |
1400 |
|
Max, working tensile strength(mm) |
110 |
140 |
170 |
190 |
230 |
260 |
280 |
|
Standard length per section(m) |
100/200 |
||||||
|
Max, wave height to withstand(m) |
2 |
2 |
2.5 |
3 |
3 |
4 |
4 |
|
Max, wind speed to withstand(m/s) |
15 |
15 |
20 |
20 |
20 |
25 |
25 |
|
Max, current speed to with stand(KN) |
2-3 |
3 |
3-4 |
3-4 |
3-4 |
3-4 |
3-4 |
|
Standard connector |
ASTM or Stainless steel hinge or pin |
||||||
|
Dimension of reel frame (mm) |
1650x2010 x2026 |
2000x2200 x2013 |
2200x2200 x2066 |
2600x2200 x2066 |
2680x2200 x2066 |
3080x2100 x2180 |
3720x2300 x2400 |
|
Drive power of power pack(KW) |
14.5kw |
14.5kw |
14.5kw |
21kw |
21kw |
21kw |
21kw |
|
Dimensions of container（mm） |
2700x2200 x2200 |
2900x2200 x2200 |
3200x2200 x2200 |
3500x2200 x2200 |
4100x2200 x2200 |
4300x2200 x2200 |
5200x2200 x2200 |
