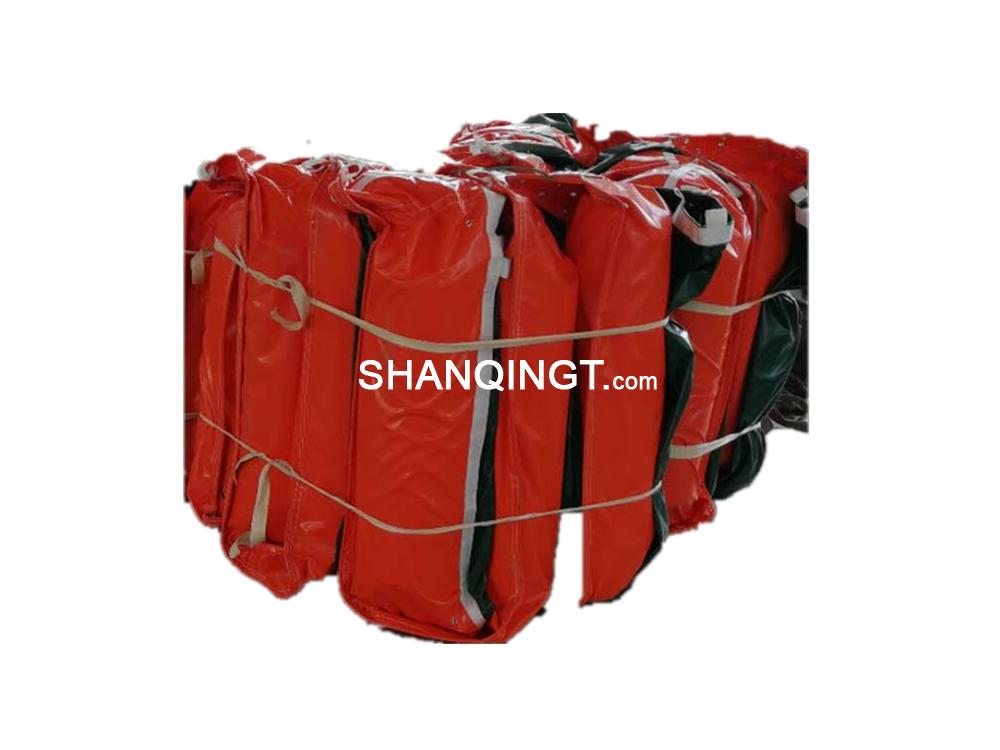

Solid Float Pvc Boom

Category：Oil boom
Product description：The solid float PVC boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer. It is widely used for long-term deployment on waters such as open seas, bays,
Inquiry

The solid float PVC boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer. It is widely used for long-term deployment on waters such as open seas, bays, harbors, wharfs, rivers, oil platform, oil-refining plants, oil piers, oil storage and also for emergent use in oil spilling accidents.

Model/Parameter	WGV600	WGV700	WGV750	WGV800	WGV900	WGV1000	WGV1100
Overall height(mm)	600	700	750	800	900	1000	1100
Freeboard(mm)	150	210	260	280	320	340	370
Draft(mm)	380	390	400	420	490	540	560
Max, working tensile strength(mm)	20	25	30	45	55	75	85
Length per section (m)	20
Max, wave height to withstand(m)	0.5	0.5	1	1.5	1.8	2	2
Max, wind speed to withstand(m/s)	8	10	10	15	15	18	20
Max, current speed to with stand(KN)	1	1	1.5	1.5	2	2.5	2.5
Standard connector	ASTM or Stainless steel hinge or pin	ASTM or Stainless steel hinge or pin	ASTM or Stainless steel hinge or pin	ASTM or Stainless steel hinge or pin	ASTM or Stainless steel hinge or pin	ASTM or Stainless steel hinge or pin	ASTM or Stainless steel hinge or pin
packing dimensions for 20m（m）	1x1x0.6	1.2x1x1	1.2x1x1	1.3x1.1x1.1	1.4x1.5x1.2	1.4x1.6x1.3	1.4x1.7x1.4
