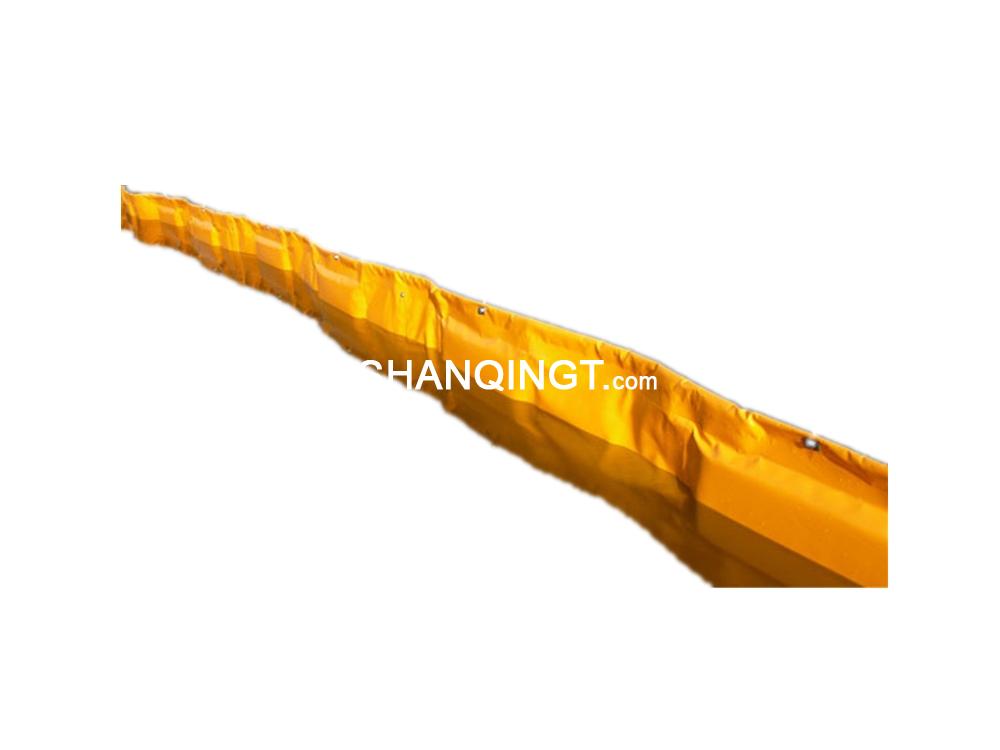

The fence boom has small storage volume and can be wound on the winch to facilitate the transport and use. It is suitable for pounds, reservoirs, lakes, rivers and especially suitable for emergency use. It can also provide simple and convenient effective oil spill protection for ports, docks, coastal waters and rivers.
Model/Parameter |
SWL450 |
SWL750 |
SWL900 |
SWL1100 |
Overall height(mm) |
450 |
750 |
900 |
1100 |
Freeboard(mm) |
150 |
250 |
300 |
400 |
Draft(mm) |
300 |
500 |
600 |
700 |
Standard length per section(m) |
10,20 |
|||
Tensile Strength(KN) |
20 |
30 |
40 |
45 |
Ballast |
Block or chain |
|||
Weight(KG/m) |
3.1 |
4.2 |
5.2 |
5.8 |
Standard connector |
ASTM or Stainless steel |
ASTM or Stainless steel |
ASTM or Stainless steel |
ASTM or Stainless steel |
storage rack for 60m(m) |
2.8x1.7x0.7 |
2.8x1.7x1.0 |
2.8x1.7x1.2 |
2.8x1.7x1.4 |
