Continuous Roller Conveyor Shot Blasting Machine

Type	Effective cleaning width（mm）	Inlet size of shot blasting room（mm）	Cleaning workpiece length（mm）	Conveying speed (m/min)	Cleaning workpiece thickness (mm)	Blasting volume (kg/min)	First loading capacity (kg)	Ventilation quantity (m3/h)	Total power （kw）
Q698	800	1600×800	1200-12000	0.5-4	3-60	4×120	4000	22000	90
Q6912	1200	1200×400	1200-12000	0.5-4	3-60	4×250	4000	17560	78.3
Q6915	1500	1700×400	1200-12000	0.5-4	1.5-60	4×250	4000	19000	113.5
Q6920	2000	2200×400	1200-12000	0.5-4	3-60	6×250	4500	19550	156.6
Q6925	2500	2700×800	3000-12000	0.5-4	3-60	6×250	4500	27758	204.8
Q6930	3000	3200×800	2400-12000	0.5-4	3-110	6×360	8000	28050	224.55
Q6940	4000	4200×400	4500-18000	0.5-4	4.5-100	8×360	11000	38000	293.6

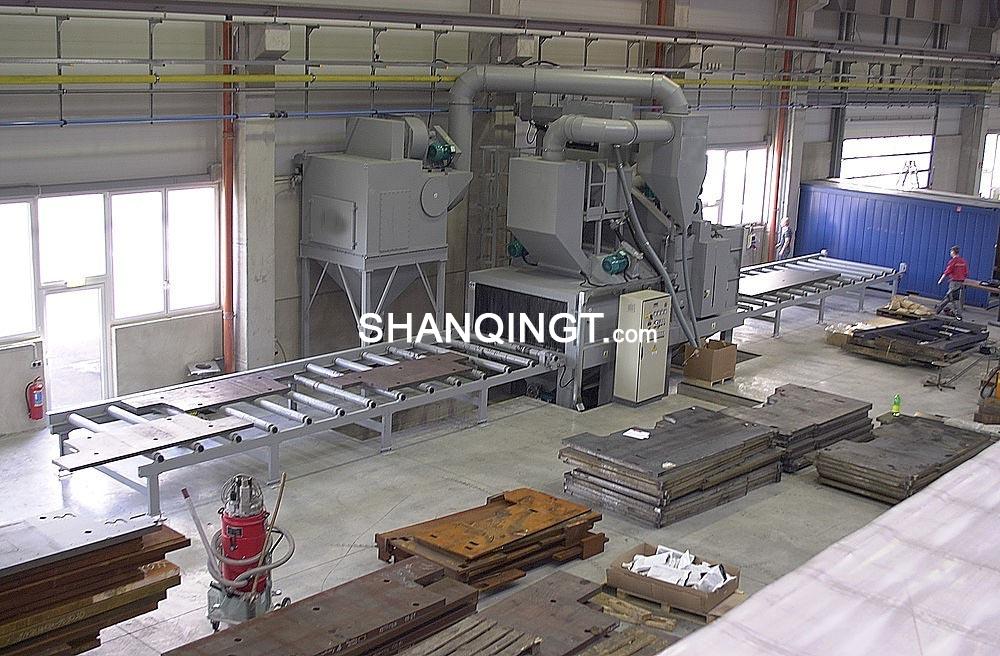

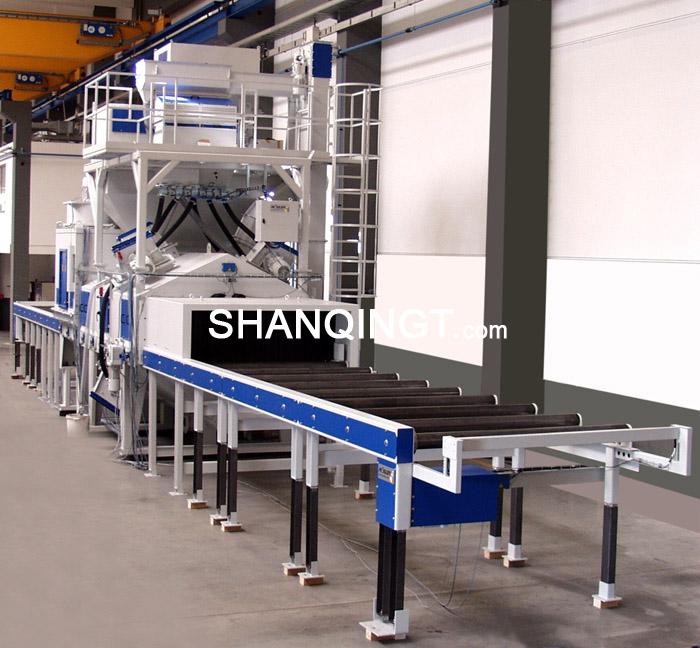

Roller conveyor machine is mainly used for processing long and (or) flat shape of the workpiece. These workpieces are continuously passed through the entering chamber, the shot blasting chamber and the cleaning chamber on a special conveyor roller table. The high efficiency shot wheel mounted on the shotcrete case can be used to handle the workpiece from each direction. The heavy duty shot wheel produced by TED The system due to the accelerated production cycle and its processing costs greatly reduced, but also to reduce the consumption of pellets, lower energy consumption.
The roller table shot blasting machine can be loaded or unloaded manually or automatically.  The special shot blasting wheel arrangement make it slightly tilted in the direction of the projectile and the perfect geometric model of the shot blasting. It ensures that the workpiece will be cleaned form every surfaces by steel grit steel grit.Then the shot blasting effect of the workpiece is perfect.

Advantages:
1.The whole roller conveyor system speed is adjusted by frequency converter.The whole system not only can be operated synchronuously,but also every part can move separately.It can rotate forward and backward.
2.Rollers in blasting chamber are protected by special material jacket to prevent abrasive blasting.
3.blast wheels,adopt Swiss GF technological,whose abrasive flow volume is 120kg/min,blasting speed≥78m/s,blade life≥800hs,distributing impeller and control cage≥1000hs,line plate and protective plate≥1500hs.
4.Abrasive cleaning(patent)
First step cleaning:plough shape scraper,polyurethane material,three layers ladder-like distribution,high efficiency.
Second step blow:high pressure blower will blow off abrasive and dust,reserved compressed air.
Additional blow pipe line is reserved.
5.we adopt the most advanced adjustable full curtain&multistage winnowing separator.Special polyester wire core is used for elevator driving belt,elevator driving wheel use mouse cage structure,preventing driving belt skidding.There are abrasive control device and replenish abrasive.Every driving point has one alarm device.
6.This machine use inertia settlement chamber plus pulse reverse blow bag type dust collector.Dust concentration of exhausted air is less than 80mg/m3.
7.PLC control system.This machine has a visualized dynamic simulation monitoring system,which can automatically find the failure position and timing wear resistable parts operation time,which will give important information to calculate spare part service time and maintenance time.
