Steel Sheet Plate Shot Blast Machine

Product Item : SQSBM04
Category：Shot Blasting Machine
Product description：Steel Sheet Plate Shot Blast Machine
Inquiry

Pretreatment line mainly for the construction of container ships, large bulk carriers, oil tankers, natural gas vessels, chemical carriers, drilling platforms, port machinery and other marine engineering use of the plates, profiles, steel components, such as the oxidation of skin, derusting and spraying protective primer surface pretreatment.

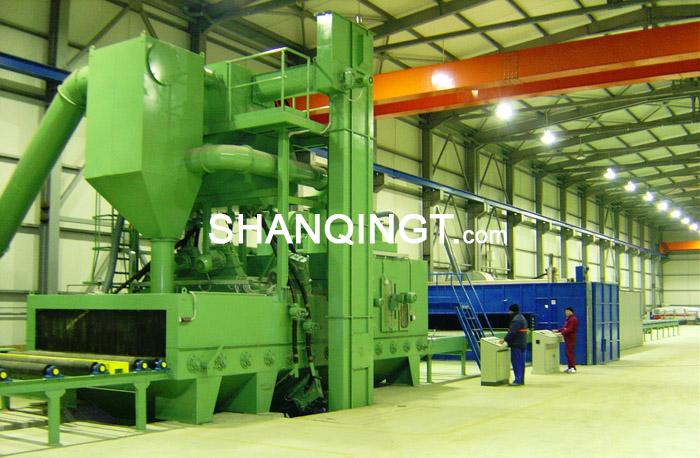

This type auto blasting and coating machine is designed and produced by adopting the advantages of similar products from both within the country and abroad. The rusting cleaning part (shot blast cleaning) adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method. The complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced.

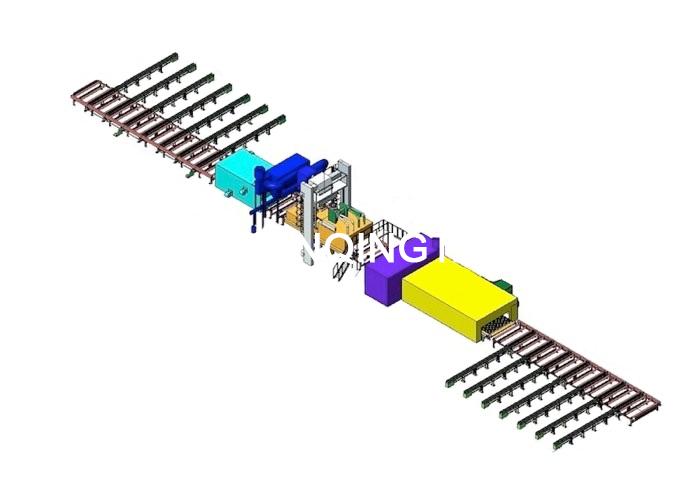

This shot blasting machine and painting line is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.

Model		QXY1500	QXY2000	QXY2500	QXY3000	QXY3500	QXY4000
Steel plate	Width	500-1500	1000-2000	1000-2500	1000-3000	1000-3500	1000-4000
	Thickness	3~20	3-60	5~30	3-60	5-35	5-50
	Length	2000-12000	1500-12000	2000-12000	2400-12000	2000-12000	2400-16000
Structure parts	Max. width	1600	800	2500	1500	3500	4000
	Max. height	500	300	400	800	400	500
	Max. length	2000-12000	2400-12000	2000-12000	2400-12000	2000-12000	2400-16000
Roller conveyor	Permissible load	1	1	1.5	2	2	2
Roller conveyor	speed	2~4	1~5	2~4	0.5-4	2~4	2~4
Total power		450	413.2	550	614	560	600

If you do not know how to choose shot blasting machine or do not see the style you need in the website, please email us, we will provide more choices or co-design!
