Tumble Shot Blast Machine With Steel Belt

Product Item : SQSBM05
Category：Shot Blasting Machine
Product description：Tumble Shot Blast Machine With Steel Belt
Inquiry

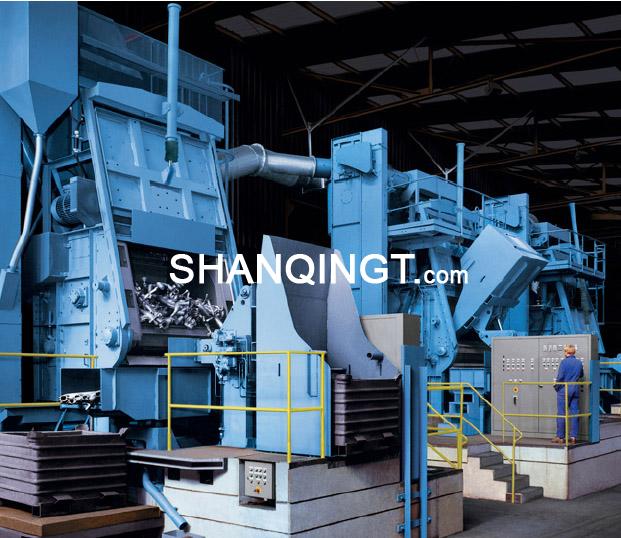

Steel belt shot blasting machine is particularly suitable for large quantities of workpiece can be turned over, large forging parts can achieve the highest processing technology standards, the gap processing system with the external feeding and unloading device can be extended into a fully automated system.

Type parameter	QTDR326	QTDR3210	QTDS3210	QTD15GL	QTD28GL
Productivity (T/H)	0.6-1.2	2-2.5	3.0-5.0	5.0-8.0	12.0-14.0
Loading weight (KG)	200	600	800	1350	3500
The maximum weight of one piece (KG)	10	30	150	250	360
Diameter of roller (MM)	650	1000	1000	1092	1245
Blasting capacity (KG/MIN)	120	250	250	480	2*350
Dedusting air volume (M3/H)	2000	3500	6000	5000	6000
Power consumption (KW)	12.6	24.3	32.6	52	44
Appearance dimension (MM)	150018803900	397626004768	364429265856	380029285856	250047006200

If you do not know how to choose shot blasting machine or do not see the style you need in the website, please email us, we will provide more choices or co-design!
