Hook Type Shot Blast Machine

Category：Shot Blasting Machine
Product description：Hook Type Shot Blast Machine
Inquiry

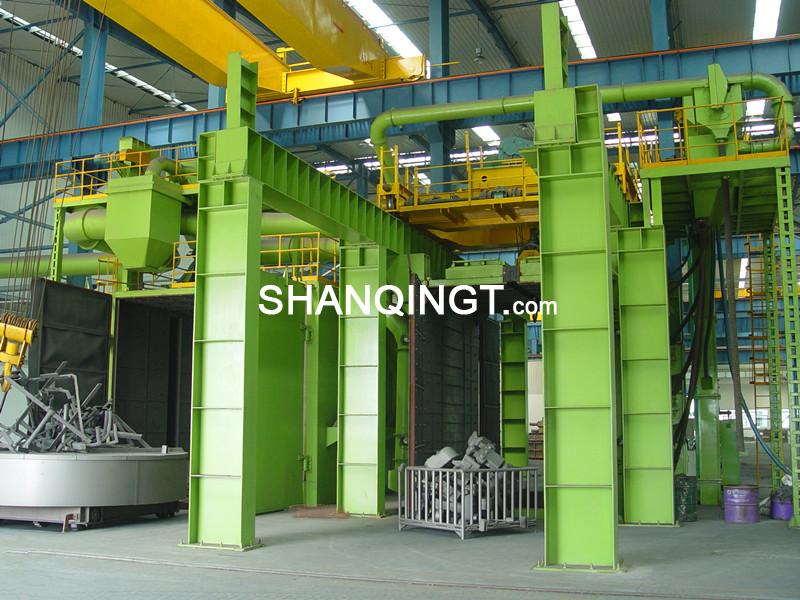

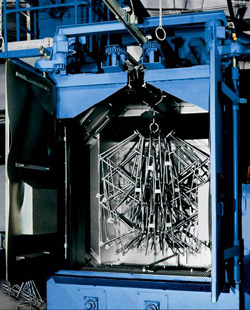

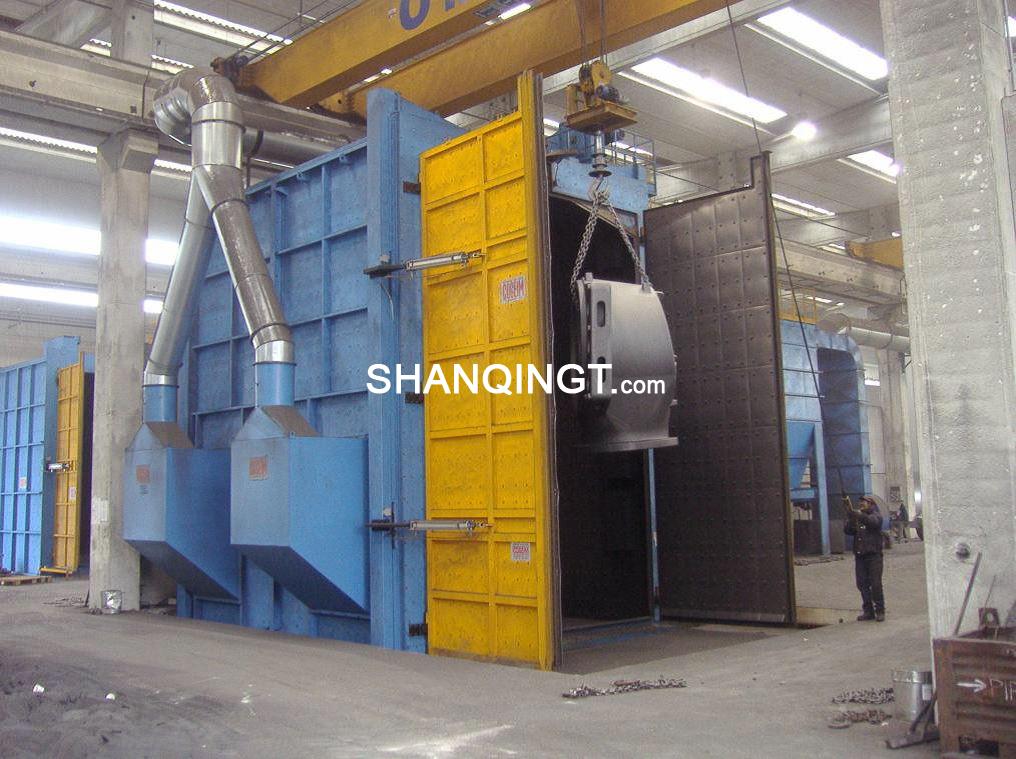

This series of hook-type throwing (shot) pill cleaning machine is extensive research at home and abroad based on the actual needs of users.It is ideal shot blast cleaning machine to treat parts of all sizes and/or particularly fragile parts. It installations with operational flexibility, suitable for many types of work, it is the most suitable machine for any need. The hook runs and rotates inside the machine exposing all the surface of the work pieces to the abrasive action from the wheels, positioned on the side of the blast chamber.

Hook shot blasting machine advantages:

1, the use of a large amount of shot blasting, high ejection speed of the international advanced cantilever centrifugal blasting machine, can significantly improve the cleaning rate, access to satisfactory quality of the clean-up.
2, Simulated projectile shot blasting machine and all the drawings are fully used computer-aided design (CAD) drawing, shot blasting machine selection and layout more reasonable.
3, hook with lifting, running and indoor rotation function.
4, clean indoor wear protective shield, greatly enhance the service life, beautiful appearance, easy to replace.
5, using bottomless pit form, easy installation and maintenance.

Usage:

Smaller machines : Aluminum die-casting, Magnesium castings, small steel fabrications, gears and technological treatments.
Medium/Large machines : forges, foundries, steel structures, gears, heat treatments, electric transformers etc.

project		model	QTD376	QTD3710	QTD3720	QTD3730	QTD3750	QTD3780	QTD37100
Clean the workpiece size		mm	Φ700*1100	Φ900*1600	Φ1400*2300	Φ1600*2400	Φ1800*2500	Φ2000*3000	Φ2500*3500
Shot amount		kg/min	2*120	2*250	3*250	3*250	4*250	4*250	5*250
Hook weight		kg	500	1000	2000	3000	5000	8000	10000
Projectile		mm	Customize	Customized	Customized	Customized	Customized	Customized	Customized
productivity	casting	Minute / piece	5~12	5~12	5~12	5~12	5~12	5~12	5~12
productivity	Forgings	Minute / piece	5~10	5~10	5~10	5~10	5~10	5~10	5~10
Dust air volume		M / h	5000	9000	15000	15000	18000	20000	20000
Total dimensions(L * W * H)		mm	44292850 3443	50473850 5156	61103599 7842	70324650 8562	70855460 8652	80506400 8652	81006400 8800
Total dimensions(L * W * H)		mm	44292850 3443	50473850 5156	61103599 7842	70324650 8562	70855460 8652	80506400 8652	81006400 8800
Total power		kw	~19	~36	~61	~64	~78	~81	~81
(Excluding dust)		kw	~19	~36	~61	~64	~78	~81	~81

If you do not know how to choose shot blasting machine or do not see the style you need in the website, please email us, we will provide more choices or co-design!
